Tabless Cylindrical Cell Flattening Tshuab

Qauv:MR-RP-SY-21A

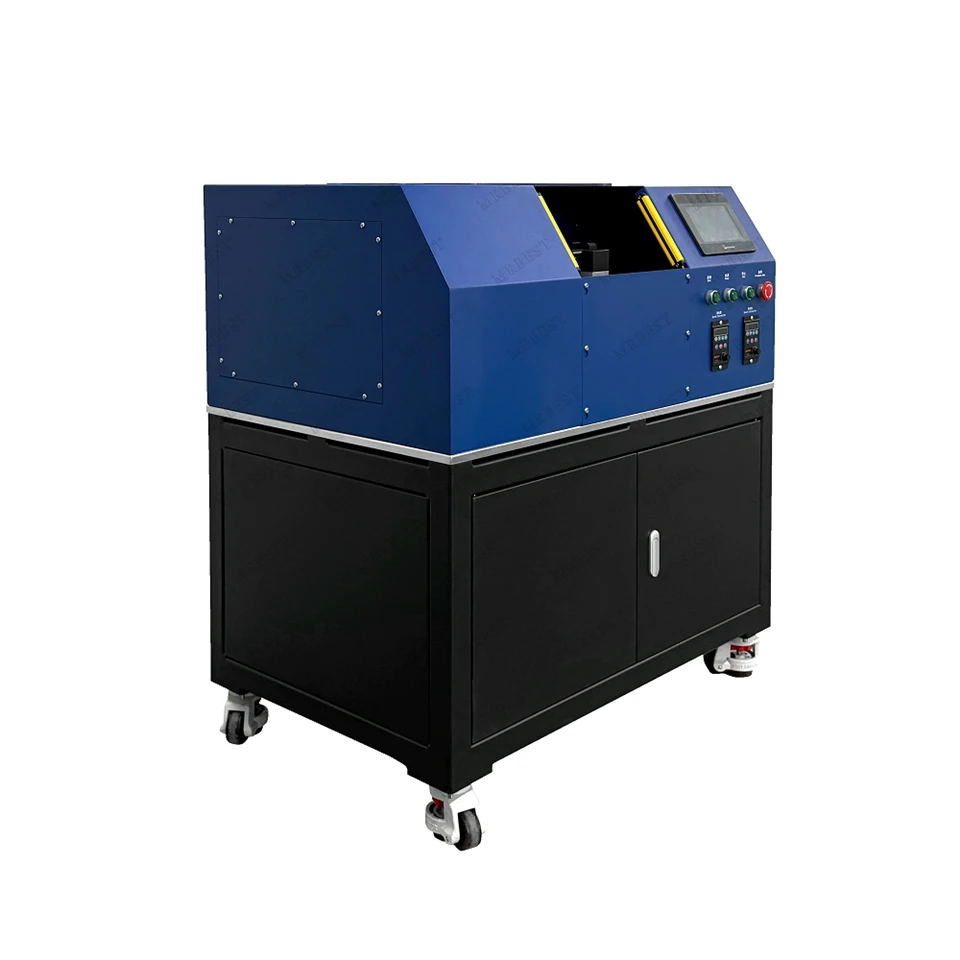

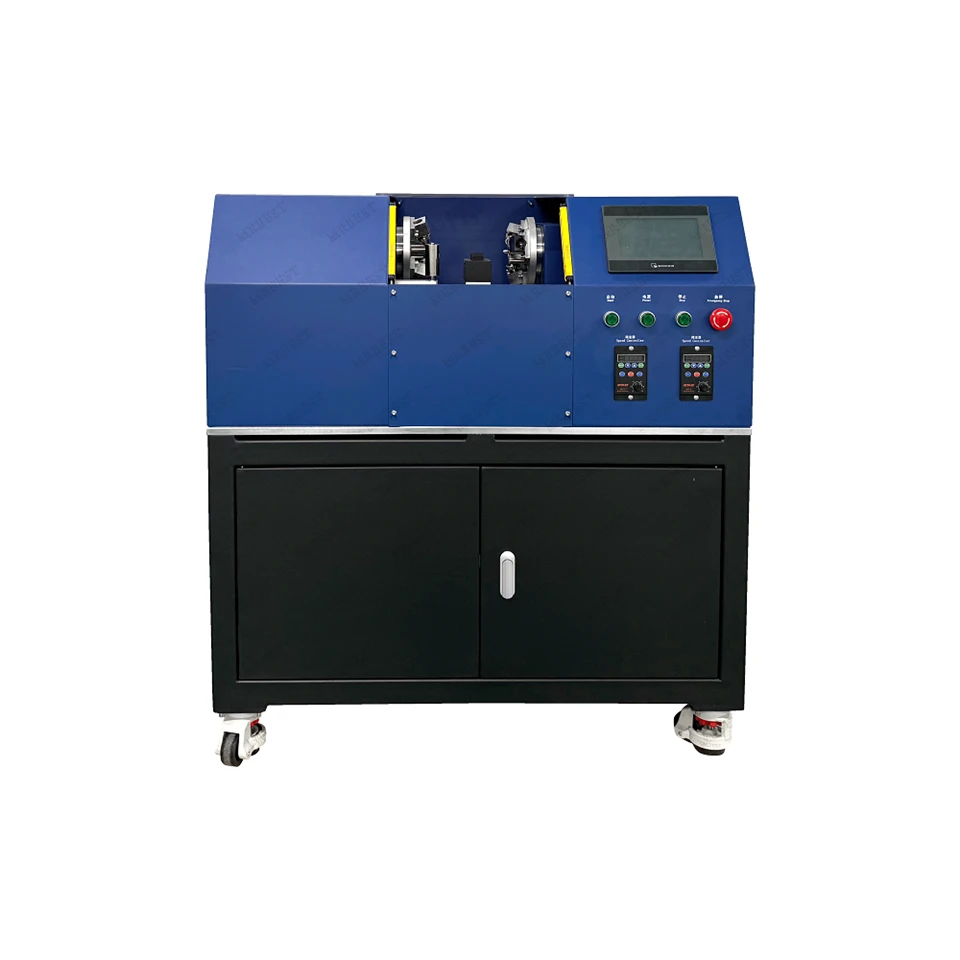

Tabless Cylindrical Cell Flattening Tshuab (MR-RP-SY-21A)

Lub Tabless Cylindrical Cell Flattening Tshuab yog tsim tshwj xeeb rau qhov kawg - lub ntsej muag shaping ntawm tabless cylindrical lithium- ion roj teeb hlwb xws li 4680, 21700, 18650, 32140, thiab 60-series hom.

Los ntawm kev siv cov txheej txheem rotary kneading, lub tshuab ua kom cov khoom siv hluav taws xob tsis sib xws thiab lub tiaj tiaj, uas yog qhov tseem ceeb rau kev txhim kho laser vuam thiab txhim kho kev sau tam sim no.

* Haum rau ntau hom cylindrical cell (18, 21, 32, 46, 60 series)

* Rotary flattening txheej txheem rau qhov kawg nkaus - ntsej muag shaping

* Tsis siv neeg ua haujlwm tom qab phau ntawv thauj khoom

* Siab- qhov tseeb qhov chaw rau cov txiaj ntsig zoo sib xws

* Ua tau -hauv kev kuaj xyuas qhov yuam kev nrog lub tswb thiab lub vijtsam kov

* Qhib parameter nqis rau kev hloov kho cov txheej txheem

* Adjustable positioning mechanism kom tau raws li cov kev xav tau sib txawv

* Ib leeg- tus neeg ua haujlwm ua haujlwm kom ua tau zoo dua

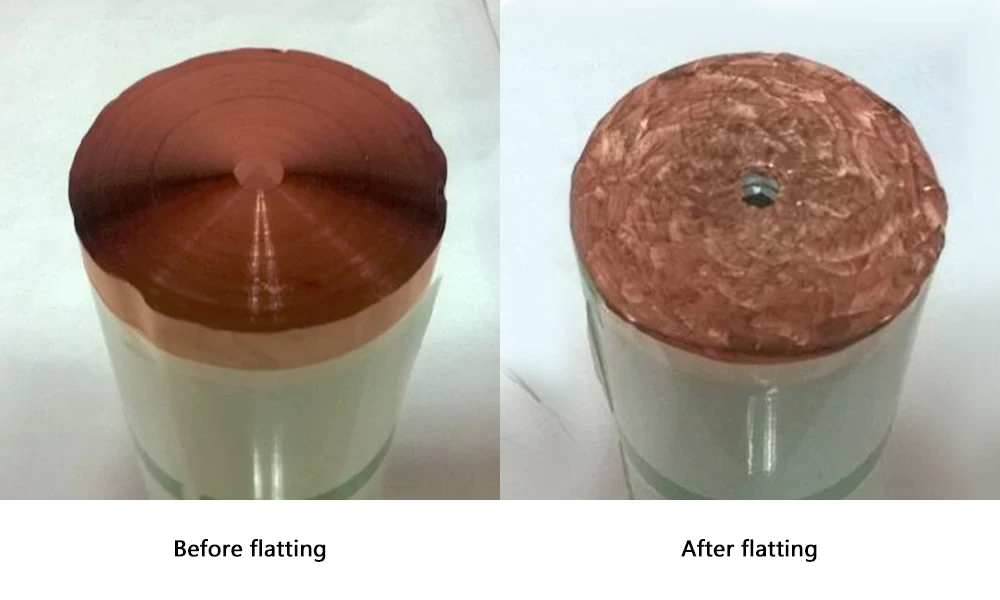

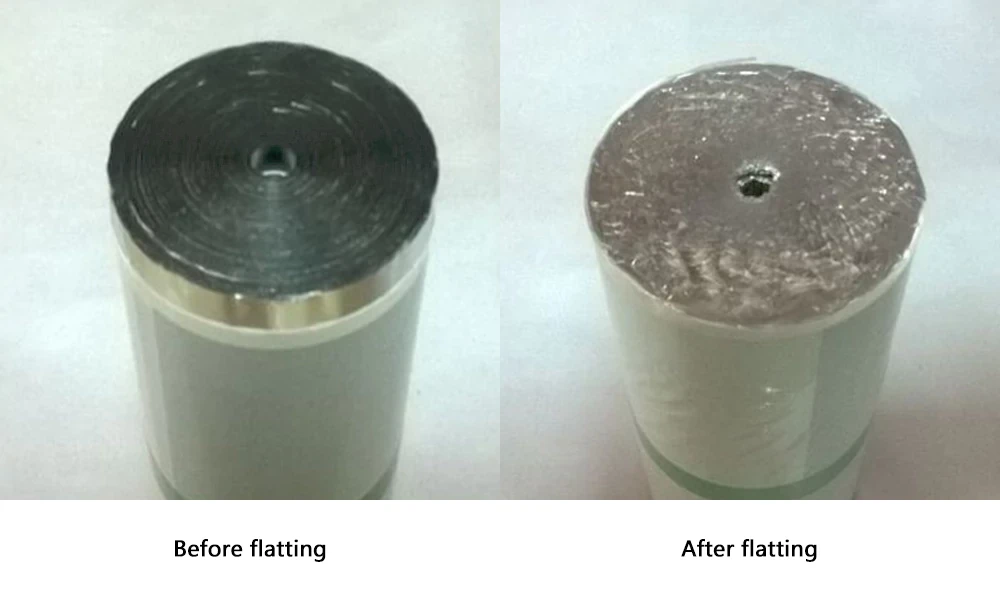

Ua ntej Flattening:Qhov kawg saum npoo ntawm lub cylindrical cell tsis sib npaug tom qab winding, uas yuav ua rau tsis zoo welding kev sib cuag, siab dua nyob rau hauv tsis kam, thiab nce tshav kub.

Tom qab Flattening:Cov xovtooj ntawm tes yog sib npaug sib npaug thiab zoo li tus, kom ntseeg tau tias txawm tias tam sim no cov khoom xa tawm thiab kev npaj zoo rau laser vuam. Qhov no txhim kho vuam zoo, txo cov kev tiv thaiv sab hauv, thiab txhim kho kev ua haujlwm ntawm tes tag nrho.

1. Thauj lub xovtooj ntawm tes mus rau hauv lub fixture ntawm qhov chaw noj mov

2. Nias lub pob pib pib ua haujlwm tsis siv neeg

3. Lub tshuab hloov pauv txav ntawm tes mus rau qhov chaw nres tsheb

4. Qhov chaw tso qhov system aligns lub cell txiav

5. Cov txheej txheem flattening ua cov txheej txheem kneading (ib lub xov tooj ntawm ib lub voj voog)

6. Cov xovtooj ntawm tes ua tiav raug xa mus rau qhov chaw nres tsheb thauj khoom

7. Tus neeg teb xov tooj tshem tawm cov txheej txheem ntawm tes

* Lithium-Ion roj teeb tshawb nrhiav chaw kuaj

* Pilot ntau lawm kab rau cylindrical hlwb

* 4680 cov phiaj xwm kev txhim kho roj teeb

* Tabless roj teeb technology R & D

* Ntau yam kev paub hauvroj teeb R & D khoom tsim khoom

* Pov thawj kev daws teeb meem raulab- nplai thiab pilot ntau lawm kab

* Kev ua haujlwm ruaj khov nroghigh precision tswj systems

* Customizable configurations raws li cov neeg siv khoom xav tau

👉 Tiv tauj peb hnub no kom tau txais cov lus hais lossis kev daws teeb meem rau koj qhov project roj teeb!

Nta ntawm Tabless Roj Teeb Cells (xws li, 4680):

Tsis muaj ib txwm tabs

Tam sim no yog ua los ntawm tag nrho qhov kawg nto

Teeb meem:

Lub cell xaus tom qab winding tsis sib xws

Qhov tshwm sim:

Kev sib cuag vuam tsis zoo

Siab sab hauv tsis kam

Cov cua kub hnyav heev

Kev daws:

Flattening / compressing / shaping ntawm tes kawg yog yuav tsum tau

Lub ntsiab mechanism yog:dual- kawg kev sib hloov + servo nias + cov menyuam sib txhuam sib sau

Txheej txheem:

Muab lub xovtooj tso rau hauv qhov kev sib tw

Tsis siv neeg clamping ntawm tes

Rotating kawg shaping taub hau pib tig

Rollers hu rau lub xov tooj kawg

Ib sab rotates clockwise, lwm rotates counterclockwise

Kev pub mis qeeb → nias → shaping

Cov nyhuv kawg:

Qhov chaw kawg yog tiaj tus

Cov khoom siv tam sim no tau muab faib sib npaug

Npaj kom meej laser vuam
