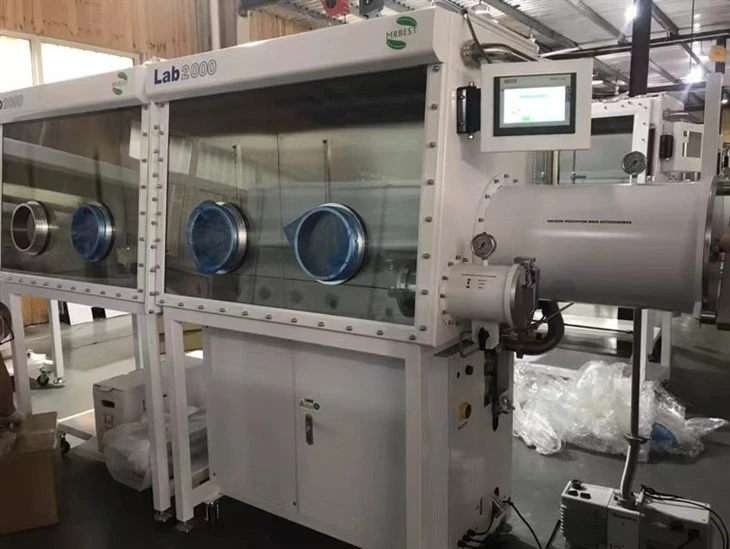

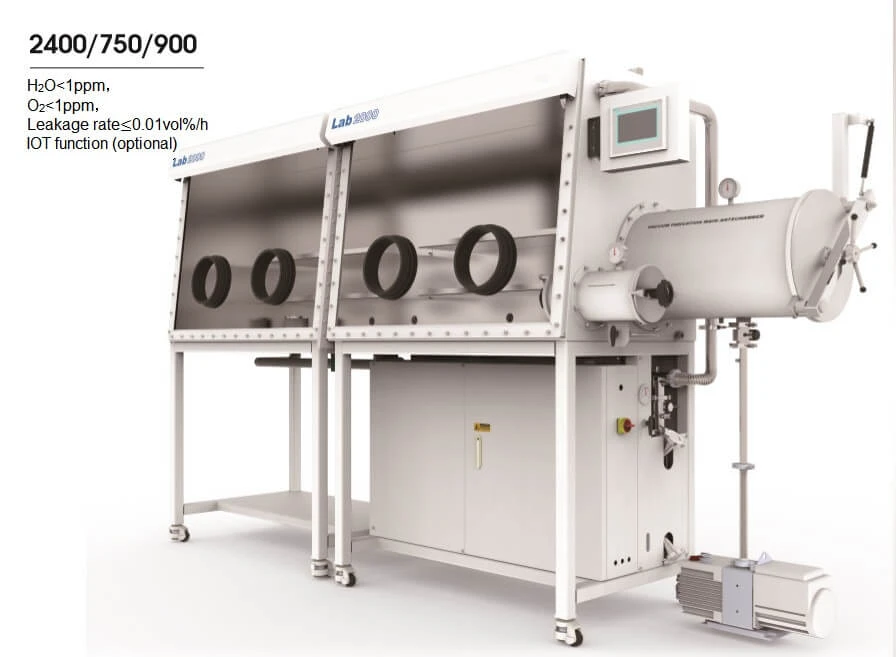

Dual-Workstation Ib-Side (2400 * 750mm) Nqus Hnab Hnab Nrog Ib Leeg purification System
mR-Lab2000-2400*7
Daim ntawv thov: MR-Lab2000 Ib leeg-sided Ob-chaw nres tsheb hnab looj tes lub thawv yog qhov ua tau zoo, ua haujlwm zoo kaw lub voj voog ua haujlwm uas tau txais cov dej thiab cov pa oxygen molecules kom kawg ua kom ib puag ncig hauv lub thawv huv. Cov txheej txheem no tuaj yeem muab qhov chaw tsis zoo nrog O2 thiab H2O hauv 1ppm. Nws yog ib qho kev lag luam purification system tsim los ua kom tau raws li cov neeg siv khoom tshawb fawb thiab kev tsim kho.
Nta
* Kaw lub voj voog, cov roj inert nyob rau hauv lub hnab looj tes circulates los ntawm lub circulating kiv cua thiab purifier mus tas li tshem tawm dej thiab oxygen;
* Tsis siv neeg tswj kev tsim dua tshiab, cov ntaub ntawv tshem tawm cov dej thiab cov pa oxygen tuaj yeem rov tsim dua tshiab, thiab cov txheej txheem rov tsim dua tshiab yog tswj los ntawm qhov kev pab cuam;
* Tsis siv neeg tu, qhov chaw hloov pauv hauv lub hnab looj tes ua tiav los ntawm kev tswj xyuas lub valve;
* Lub thawv siab tswj, lub siab hauv lub hnab looj tes yog tswj los ntawm PLC;
* Tswj, tuaj yeem teeb tsa dawb, lub kaw lus cia li tiv thaiv thaum tshaj +/- 12mbar;
* Lub tshuab nqus tsev twj tso kua mis yog tswj tau thiab lub tshuab nqus tsev twj tso kua mis tuaj yeem qhib thaum lub kaw lus xav tau.
Specifications
|
Qauv |
Integrated qauv (Purification System kev koom ua ke hauv qab lub thawv) |
||||
|
Fais fab mov |
110 - 220V AC, 50/60Hz, Ib theem |
||||
|
Hnab looj tes Box |
Khoom siv: 304 Stainless Hlau (Hom 304), thickness 3 hli Box Loj (tsis suav nrog antechamber thiab kev txhawb nqa): 2400mm (L) x 750mm (W) x 900mm (H) 94.49 " x 29.5" x 35.4" Box Support qhov siab: 900mm (35.43 ") |
||||
|
Tais |
Standard Layout
|
Ob txheej hauv lub thawv. |
|||
|
Kev xaiv / Ntxiv: lub thawv cuab yeej lossis lwm yam
|
Ntau lub thawv cuab yeej, tuaj yeem muab tso rau raws li cov neeg siv xav tau. |
||||
|
Lub qhov rais pem hauv ntej |
Tilt tsim kev khiav hauj lwm qhov rais, tshem tau kev ruaj ntseg toughened iav pem hauv ntej qhov rais, 8 hli thickness, hnav tsis kam, corrosion kuj, zoo lub teeb kis tau tus mob, sealing nplhaib siv 3/8 nti tuab OMEGA sealing nplhaib. |
||||
|
Kev xaiv: Qhov rai Qhib |
Lub qhov rais pem hauv ntej tuaj yeem tsim los qhib es tsis txhob kho, txhawm rau muab tso rau hauv ntau yam twj paj nruag (kev cai ua haujlwm).
|
||||
|
Ib puag ncig ntawm Box sab hauv |
H2O <1 ppm (20°C/68 ℉, 1 atm) O2 <1 ppm (20°C/68 ℉, 1 atm) |
||||
|
Antechamber |
Tswj txoj kev: phau ntawv Tsim: ob lub voj voog antechambers Lub ntsiab chamber loj: Φ360mm (Dia.) x 600mm (ntev) (qhov chaw: sab xis ntawm lub thawv) 14.17 "(Dia.) x 23.62" (L) Mini chamber loj: Φ150 hli (Dia.) x 300mm (L) (qhov chaw: sab xis ntawm lub thawv) 5.9 "(Dia.) x 11.8" (L) Vacuum degree:<=－0.1MPa(right side antechambers included main chamber and mini chamber, all of that are need vacuum and display. The vacuum pressure gauge brand is German WIKA. |
||||
|
Kev xaiv / ntxiv kev tswj nws tus kheej
|
Nws yuav cia li tswj lub antechamber los ntawm lub sij hawm teem thiab tus naj npawb ntawm lub sij hawm rau cov pa pa thiab sau. |
||||
|
Kev xaiv / Ntxiv: cua sov hom
|
Max kub: 200 degree / 392 ℉ Tswj qhov tseeb: ± 2 degree / ± 3.6℉ Lub ntsiab chamber thiab mini chamber yog ob qho tib si tuaj yeem ntxiv cov cua sov ua haujlwm (piv nrog tus qauv antechamber qhov loj me me sib txawv) |
||||
|
Gas ua hauj lwm thiab regeneration gas |
Ua haujlwm roj: 99.999% siab ntshiab N2, Ar, Nws thiab lwm yam roj inert Tswj roj: 99.999% siab ntshiab inert roj Regeneration gas: sib xyaw cov pa roj ua haujlwm thiab H2, hydrogen (H2) Volume accounted rau 5-10% Yog tias lub kaw lus ntshiab tsuas muaj kev tshem tawm cov dej noo, cov roj regeneration yog tib yam nrog cov roj ua haujlwm |
||||
|
Gas purification system |
Tib kab Gas Purification System suav nrog: German BASF Oxygen tshem tawm cov khoom, US UOP siab noo noo nqus cov khoom. Cov txheej txheem rov ua dua tshiab ntawm kev ua kom huv yog nws pib tswj thiab tsis siv neeg ya raws thiab oxygen tshem tawm muaj nuj nqi. Gas purity tuaj yeem ruaj khov thiab ua kom ntev ntev: H2O<1ppm, O2<1ppm. |
||||
|
Kev xaiv: dual kab purification system (ib qho siv thiab lwm qhov yog khaws cia) |
Vim li cas thiaj xaiv duel ntshiab kem? 1, Pure kem yuav tsum tau regenerated tom qab saturated los ntawm absorbing oxygen thiab ya raws. Lub sijhawm rov tsim dua yog 16 teev. Yog tias tsis muaj qhov tshwj tseg, nws yuav tsum tsis ua haujlwm. (peb pom zoo kom ob kem purification system rau lub Hoobkas lossis lwm chav tsev uas xav tau lub hnab looj tes ua haujlwm tsis tu ncua); 2, Lub peev xwm ntshiab ntawm ob kab ntshiab yog ob zaug ntau npaum li ib kem |
||||
|
Siab tswj qhov system |
Lub thawv siab tuaj yeem tswj tau los ntawm PLC kov npo Tswj qhov tseeb: ± 1Pa Kuj tseem tuaj yeem tswj tau manually los ntawm ko taw hloov |
||||
|
Lim qhov system |
Qhov kawg ntawm inlet thiab qhov hluav taws xob ob leeg yog muab nrog lim Lub lim precision yog: 0.3 mu m |
||||
|
Kaw circulating kiv cua |
Kev kub ceev zaus hloov kiv cua, ntws 0-100m3 / h, microprocessor tswj, Stainless hlau ntaus ntawv rau kev ntsuas siab. Nrog cov khoom siv dej txias (tuaj yeem nruab nrog cov dej txias thiab cov khoom siv tub yees sab nraud) |
||||
|
Tswj qhov system
|
SIEMENS xim kov npo (6 nti), PLC tswj qhov system, ob hom lus hauv Suav thiab Askiv tuaj yeem hloov tau Siab sensor: -2500-2500Pa kov npo, raug ± 1Pa Kev tswj siab: tswj lub thawv siab rau ib qho chaw teeb tsa (scope tuaj yeem teeb tsa) |
||||
|
kev ntsuas
|
Moisture analyzer: UK MICHELL hom, {{0}} ppm kov npo zaub, precision 0.1ppm |
||||
|
Oxygen analyzer: US Avcray hom, {{0}} ppm kov npo zaub, precision 0.1ppm |
|||||
|
Lub tshuab nqus tsev twj
|
Britain Brand EDWARDS, siv ceev 8.4-12m3/h, Qauv: RV12 Siab siab 2 x 10-3 mbar/1.5 x 10-3 Torr Inlet flange NW25 Qhov hluav taws xob flange NW25 Lub suab nrov: 50 Hz 时 48 dBA |
||||
|
Hnab looj tes
|
Hom Lub Npe: US NORTH Khoom siv: Butyl Qauv: 8B1532 |
||||
|
illumination system |
Nruab nrog fluorescent teeb. Brand: PHILIPS |
||||
|
Solvent tshem tawm system |
Ua tau zoo adsorption ntawm activated carbon, tuaj yeem tshem tawm cov kuab tshuaj organic; |
||||
|
Spare KF40 tus qauv sib koom ua ke |
Tsim tshwj xeeb rau KF40 Joint, koj tuaj yeem coj cov dej mus rau hauv lub thawv
|
||||
|
tuaj yeem txuas nrog rau lwm yam khoom siv (cov tub yees txias txias, zaj duab xis txheej tshuab, tsom iav, hnyav purification system, tsis tshua muaj kub txias ntxiab, cua sov rauv, thiab lwm yam.) |
txias txias txias |
|
|||
|
microscope |
|
||||
|
Solvent Purification System |
|
||||
|
Txheej tshuab |
Hauv kev sib txuas (ib lub qhov rooj ntawm lub tshuab txheej yog sab hauv lub hnab looj tes)
Kev sib txuas sab nraud
|
||||
|
Cov cuab yeej loj thiab chav yuav tsum tau ua |
Zuag qhia tag nrho |
3050 hli (L) x 1000 hli (W) x 1950 hli (H) 120.08" x39.37" x 76.77" |
|||
|
Chav loj |
2200 hli (L) x 1500 hli (W) x 2000 hli (H) 133.86" x59" x 78.74" |
||||
|

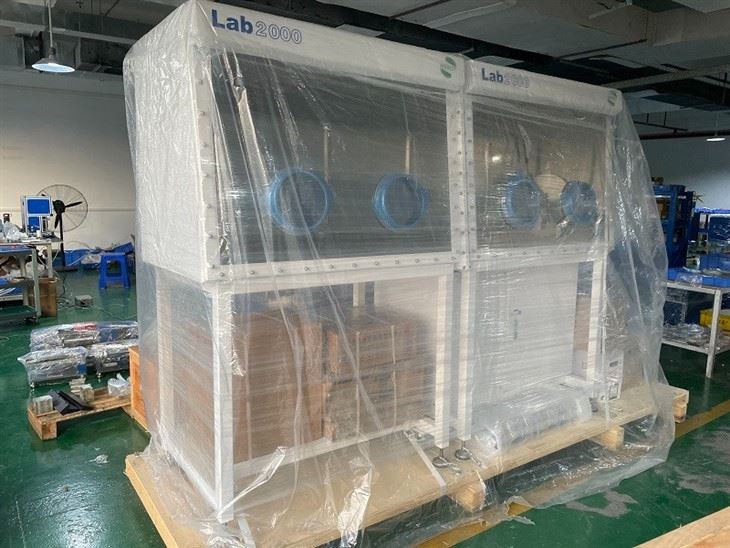

Ntoo Pob Loj thiab qhov hnyav |
3385mm (L) x 1145mm (W) x 2300mm (H) 133.27" x 45" x 91" (5.8M3) |
||||
|
1020 kg (2197 lbs) |
|||||
|
Daim ntawv ceeb toom |
Thaum cov roj ntws tawm, yuav tsum xyuas kom meej tias cov kav dej ntawm lub voj voog yog qhov tseeb thiab tsis tuaj yeem thaiv tau (yog tias cov xim ntawm cov lim hloov los ntawm dawb mus rau xim dub, lub lim yuav tsum tau hloov raws sijhawm). Tsis muaj corrosive gas hauv lub hnab looj tes. Nws yuav tsum tau rov tsim dua kab ke thaum cov ntsuas dej noo thiab cov pa oxygen tsis tuaj yeem ua tau raws li qhov xav tau ntawm kev ua haujlwm. Yog tias cov roj corrosive raug tso tawm hauv lub hnab looj tes.(xws li LiPF6 electrolyte), thov tsis txhob siv. koj yuav tsum muab lub raj mis ntim cov kua foob. Lub tshuab nqus tsev twj tso kua mis yuav tsum tau kuaj xyuas cov roj qib thiab tswj xyuas lub sijhawm tsis tu ncua. |
||||
